Product Range
GDPA Fasteners has a range of Automated Cutting and Hydraulic Threading Machines, producing a range of Standard Threaded Rods and Engineered Studs. These are made in METRIC, METRIC FINE BSW BSF UNC UNF threads and also trapezoidal Acme and special profile threads.
Our specialization includes :
– Threading capability from M6 to M80 in lengths upto 6000mm.
– Heat treatment facility upto 2000mm.
– Hot dip galvanizing upto 3000mm.

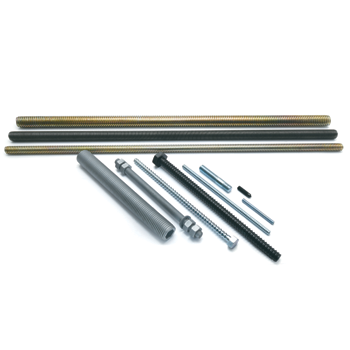

Threaded Rods & Studs Product Range
| Product Range | Specifications | Grade | Thread | Dimensional Range | |
|---|---|---|---|---|---|
|
THREADED RODS |
DIN 975 | GR – 4.6/4.8/5.6/5.8/6.8/8.8/10.9 | METRIC 6G,8G | M6 TO M64 | UPTO 6 MTR |
| DIN 976-A | GR – 4.6/4.8/5.6/5.8/6.8/8.8/10.9 | UNC/UNF-2A | L 1/2″ TO 21./2″ | UPTO 6 MTR | |
|
ENGINEERED STUDS PART /
FULLY THREADED |
AMERICAN SERIES | GR – ASTM A193, B7 | UNC/UNF-2A | 1/2″ TO 2.1/4″ | UPTO 6 MTR |
| DIN 975 | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G,8G | M6 TO M52 | UPTO 6 MTR | |
| DIN 976-A | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G,8G | M6 TO M52 | UPTO 6 MTR |
