Product Range

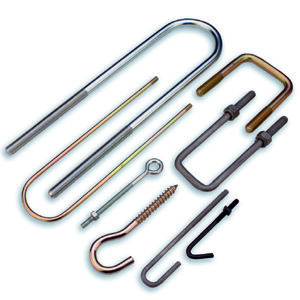

The Anchor Bolts division does a range of U / J / L Anchor Bolts and Eye Bolts in Bent, Bent and Welded and Forged types. As these parts are used for load bearing applications, these are made by cold / warm bending and forging processes with special attention towards tooling and temperature while upsetting.
These products are used in Structural Support Systems, Foundations, HVAC and Pipe Clamping Applications, Automotive, Trailer & Heavy Earth Moving Equipment.
Our specialization includes :
– Bending capability from M6 to 56mm diameter for U/L & anchor bolts and bent products.
Foundation Bolts & Anchor Bolts
| Product Range | Specifications | Grade | Thread | Dimensional Range | |
|---|---|---|---|---|---|
| Foundation bolts | As per Customer spec | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G,8G | M12 TO M80 | UPTO 3 MTR |
| Anchor Bolt (L & J Type) |
As per Customer spec | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G,8G | M10 TO M48 | UPTO 2 MTR |
| U-BOLT | TO CUSTOMER DRAWING | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G/8G | M10-M24 | |
| EYE HOOK BOLTS | TO CUSTOMER DRAWING | GR – 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G/8G | M10-M24 |
